Pilot Operated Check Valves
Designed to provide precise pressure relief and system protection through pilot-operated control. Ensures stable pressure regulation, reliable performance, and enhanced safety in hydraulic applications.
|

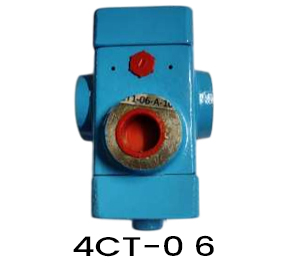

Pilot Operated Check Valve
|
Cracking Pressure
|
|---|---|
|
VH-4CT-06-A-10
|
A = 30 psi
|
|
VH-4CT-06-C-10
|
C = 75 psi
|
|
VH-4CT-06-F-10
|
F = 150 psi
|
|
Pilot Operated Check Valve - With External Drain
|
Cracking Pressure
|
|---|---|
|
VH-4CT1-06-A-10
|
A = 30 psi
|
|
VH-4CT1-06-C-10
|
C = 75 psi
|
|
VH-4CT1-06-F-10
|
F = 150 psi
|
|

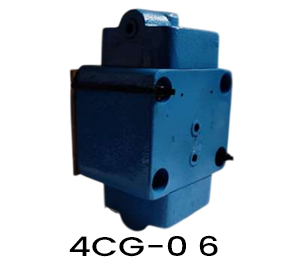

Pilot Operated Check Valve
|
Cracking Pressure
|
|---|---|
|
VH-4CG-06-A-10
|
A = 30 psi
|
|
VH-4CG-06-C-10
|
C = 75 psi
|
|
VH-4CG-06-F-10
|
F = 150 psi
|

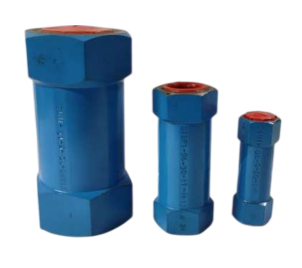

In-Line Check Valves
Designed to permit fluid flow in one direction while preventing reverse flow, ensuring efficient and reliable hydraulic system operation. Compact and durable, they provide effective protection against backflow and pressure loss.
|
Valve Model
|
Cracking Pressure
|
|---|---|
|
VH-DT8P1-03-5-10
|
5 psi
|
|
VH-DT8P1-03-30-10
|
30 psi
|
|
VH-DT8P1-03-65-10
|
65 psi
|
|
Valve Model
|
Cracking Pressure
|
|---|---|
|
VH-DT8P1-06-5-10
|
5 psi
|
|
VH-DT8P1-06-30-10
|
30 psi
|
|
VH-DT8P1-06-65-10
|
65 psi
|
|
Valve Model
|
Cracking Pressure
|
|---|---|
|
VH-DT8P1-10-5-10
|
5 psi
|
|
VH-DT8P1-10-30-10
|
30 psi
|
|
VH-DT8P1-10-65-10
|
65 psi
|
Standard Check Valves (Subplate / Surface Mounted)
Designed to allow unrestricted flow in one direction while preventing reverse flow in hydraulic circuits. Available in subplate and surface-mounted configurations for easy installation, dependable performance, and effective system protection.
|

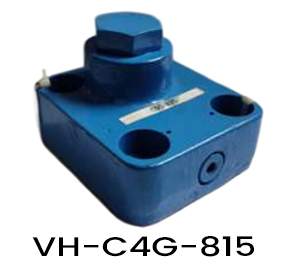

Check Valve (C4G-815 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C4G-815
|
5 psi
|
|
VH-C4G-815-58
|
75 psi
|
|
VH-C5G-815-512
|
5 psi
|
|
VH-C4G-815-S19
|
20 psi
|
|

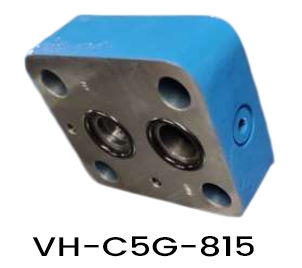

Check Valve (C5G-815 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C5G-815
|
5 psi
|
|
VH-C5G-815-58
|
75 psi
|
|
VH-C5G-815-S19
|
5 psi
|
|
VH-C5G-815-S19
|
20 psi
|
|

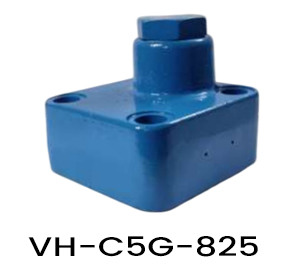

Check Valve (C5G-825 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C5G-825
|
5 psi
|
|
VH-C5G-825-58
|
75 psi
|
|
VH-C5G-825-S19
|
5 psi
|
|
VH-C5G-825-S19
|
20 psi
|
Right Angle Check Valves
Designed for hydraulic circuits requiring a 90-degree flow path, allowing fluid flow in one direction while preventing reverse flow. Offers compact installation, reliable backflow protection, and efficient system performance.
|

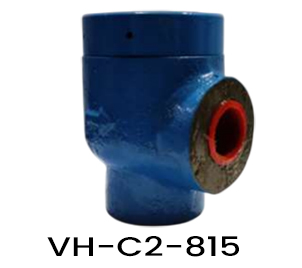

R A Check Valves (VH-C2-815 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C2-815
|
5 psi
|
|
VH-C2-815-58
|
75 psi
|
|
VH-C2-815-512
|
5 psi
|
|
VH-C2-815-519
|
20 psi
|
|

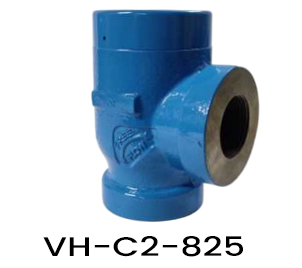

R A Check Valves (VH-C2-825 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C2-825
|
5 psi
|
|
VH-C2-825-58
|
75 psi
|
|
VH-C2-825-512
|
5 psi
|
|
VH-C2-825-519
|
20 psi
|
|
R A Check Valves (VH-C2-830 Series)
|
Cracking Pressure
|
|---|---|
|
VH-C2-830
|
5 psi
|
|
VH-C2-830-58
|
75 psi
|
|
VH-C2-830-512
|
5 psi
|
|
VH-C2-830-519
|
20 psi
|
