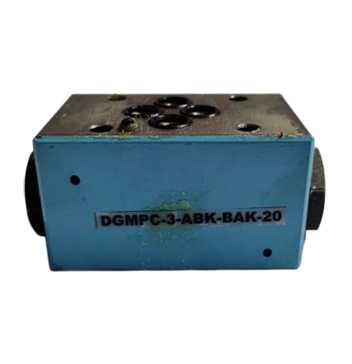

Pilot Operated Check Valve
|
Pilot Operated Check Valve
|
||||
|---|---|---|---|---|
|
VH-DGMPC-3-ABK-20
|
K - 14.5 psi
|
|||
|
VH-DGMPC-3-BAK-20
|
K - 14.5 psi
|
|||
|
VH-DGMPC-3-ABK--20
|
||||

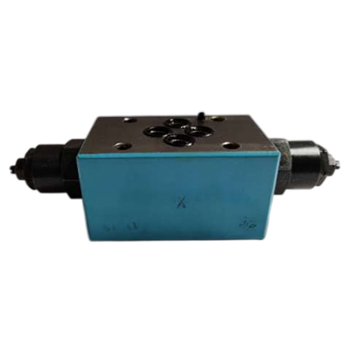

Pressure Reducing Valves
Pressure Reducing Valves are modular CETOP-3 valves designed to maintain a preset lower pressure in a specific branch of a hydraulic circuit, regardless of fluctuations in the main system pressure. They provide precise pressure control, protect sensitive components, and ensure smooth, reliable operation of hydraulic equipment.
|
Pressure Reducing Valve
|
||||
|---|---|---|---|---|
|
VH-DGMX1-3-PA-AW-20
|
A = 50 - 425 psi
|
|||
|
VH-DGMX1-3-PA-BW-20
|
B = 225 - 1000 psi
|
|||
|
VH-DGMX1-3-PA-CW-20
|
C = 225 - 2000 psi
|
|||
|
VH-DGMX1-3-PA-FW-20
|
F = 225 - 3600 psi
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMX1-3-PB-AW-20
|
A = 50 - 425 psi
|
|||
|
VH-DGMX1-3-PB-BW-20
|
B = 225 - 1000 psi
|
|||
|
VH-DGMX1-3-PB-CW-20
|
C = 225 - 2000 psi
|
|||
|
VH-DGMX1-3-PB-FW-20
|
F = 225 - 3600 psi
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMX1-3-PP-AW-20
|
A = 50 - 425 psi
|
|||
|
VH-DGMX1-3-PP-BW-20
|
B = 225 - 1000 psi
|
|||
|
VH-DGMX1-3-PP-CW-20
|
C = 225 - 2000 psi
|
|||
|
VH-DGMX1-3-PP-FW-20
|
F = 225 - 3600 psi
|
|||

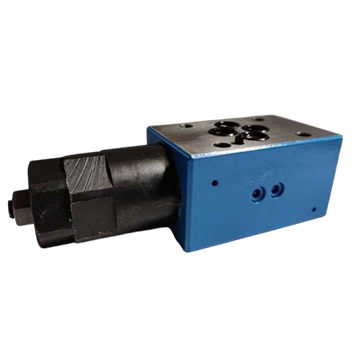

Flow Control Valve
Flow Control Valves are modular CETOP-3 valves designed to regulate and maintain the flow rate of hydraulic fluid, enabling precise control of actuator speed and system performance. They ensure smooth operation, improved efficiency, and reliable flow management in a wide range of hydraulic applications.
|
|
||||
|---|---|---|---|---|
|
VH-DGMFN-3-X-A2W-20
|
X = METER IN
|
|||
|
VH-DGMFN-3-X-B2W-20
|
X = METER IN
|
|||
|
VH-DGMFN-3-X-A2W-B2W-20
|
X = METER IN
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMFN-3-Y-A2W-20
|
Y = METER OUT
|
|||
|
VH-DGMFN-3-Y-B2W-20
|
Y = METER OUT
|
|||
|
VH-DGMFN-3-Y-A2W-B2W-20
|
Y = METER OUT
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMFN-3-Z-P2W-20
|
Z = METER IN P-line
|
|||
|
VH-DGMFN-3-also available in 1W option
|
Note on availability
|
|||

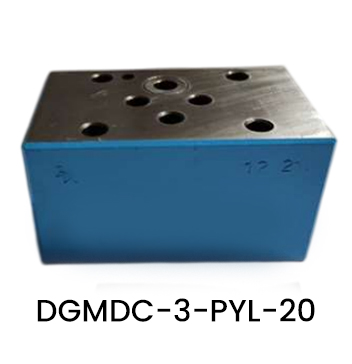

Direct Check Valves
Direct Check Valves are modular hydraulic valves that permit free flow in one direction while preventing reverse flow within the circuit. Their compact System Stak design provides reliable backflow protection, enhanced system safety, and efficient hydraulic operation without additional piping requirements.
|
|
||||
|---|---|---|---|---|
|
VHDGMDC--3-PYL-20
|
L = 5 psi
|
|||
|
VH-DGMDC-3-PYR-20
|
R = 50 psi
|
|||
|
VH-DGMDC-3-TXL-20
|
L = 5 psi
|
|||
|
VH-DGMDC-3-TXR-20
|
R = 50 psi
|
|||
|

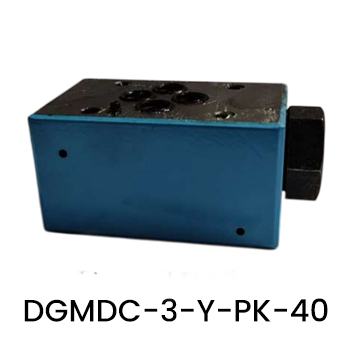

VH-DGMDC-3-Y-PK-40
|
K = 14 psi
|
|||

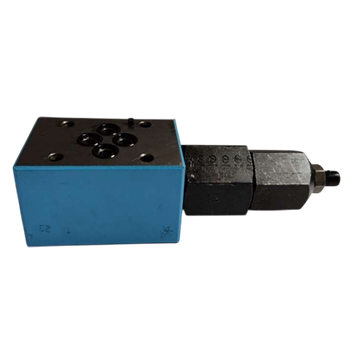

Pressure Relief Valves - SINGLE
Pressure Relief Valves are CETOP-3 modular valves designed to protect hydraulic systems by limiting maximum pressure to a preset value. They automatically divert excess pressure, safeguarding components from overload while ensuring stable, efficient, and reliable system operation.
|
|
||||
|---|---|---|---|---|
|
VH-DGMC-3-AT-BW-31
|
B = 145 - 1000 psi
|
|||
|
VH-DGMC-3-AT-CW-31
|
C = 435 - 2000 psi
|
|||
|
VH-DGMC-3-AT-FW-31
|
F = 725 - 3600 psi
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMC-3-BT-BW-31
|
B = 145 - 1000 psi
|
|||
|
VH-DGMC-3-BT-CW-31
|
C = 435 - 2000 psi
|
|||
|
VH-DGMC-3-BT-FW-31
|
F = 725 - 3600 psi
|
|||
|
|
||||
|---|---|---|---|---|
|
VH-DGMC-3-PT-BW-31
|
B = 145 - 1000 psi
|
|||
|
VH-DGMC-3-PT-CW-31
|
C = 435 - 2000 psi
|
|||
|
VH-DGMC-3-PT-FW-31
|
F = 725 - 3600 psi
|
|||

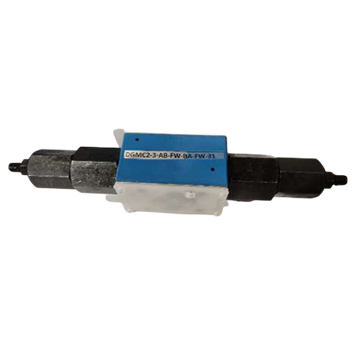

Pressure Relief Valves – Dual
Pressure Relief Valves – Dual are CETOP-3 modular valves designed to independently control and limit pressure in two hydraulic lines within a single compact unit. They provide reliable overload protection, improved circuit flexibility, and enhanced system safety while reducing installation space and complexity.
|
|
||||
|---|---|---|---|---|
|
VH-DGMC2-3-AB-BW-BA-BW-30
|
B = 145 - 1000 psi
|
|||
|
VH-DGMC2-3-AB-CW-BA-CW-30
|
C = 435 - 2000 psi
|
|||
|
VH-DGMC2-3-AB-FW-BA-FW-30
|
F = 725 - 3600 psi
|
|||
|
VH-DGMC2-3-AT-BW-BT-BW-30
|
B = 145 - 1000 psi
|
|||
|
VH-DGMC2-3-AT-CW-BT-CW-30
|
C = 435 - 2000 psi
|
|||
|
VH-DGMC2-3-AT-FW-BT-FW-30
|
F = 725 - 3600 psi
|
|||
Counter Balance Valves
Counter Balance Valves are modular CETOP-3 valves designed to control overrunning loads and prevent uncontrolled actuator movement caused by gravity or external forces. They provide smooth load handling, enhanced safety, and stable operation in lifting, lowering, and load-holding hydraulic applications.
|
Counter Balance Valves
|
||||
|---|---|---|---|---|
|
VH-DGMR-3-TA-AW-20
|
A = 50 - 425 psi
|
|||
|
VH-DGMR-3-TA-BW-20
|
B = 300 - 1000 psi
|
|||
|
VH-DGMR-3-TA-CW-20
|
C = 725 - 2000 psi
|
|||
|
VH-DGMR-3-TA-FW-20
|
F = 1450 - 3600 psi
|
|||
|

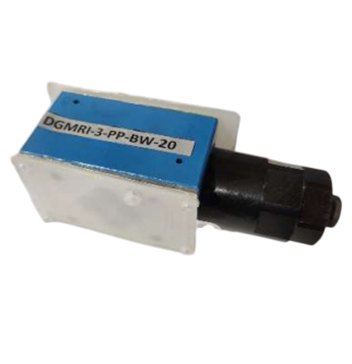

Sequence Valves
|
||||
|---|---|---|---|---|
|
VH-DGMR-3-PP-AW-20
|
A = 50 - 425 psi
|
|||
|
VH-DGMR-3-PP-BW-20
|
B = 300 - 1000 psi
|
|||
|
VH-DGMR-3-PP-CW-20
|
C = 725 - 2000 psi
|
|||
|
VH-DGMR-3-PP-FW-20
|
F = 1450 - 3600 psi
|
|||
